SW series water level sensor is a component designed for checking water level. According to the water level, the product sends oscillation frequency to the appliance’s control board. It depends on the pressure, magnetic field, and electric signal to realize the function.
Specification
|
Model |
SW-9 |
|
|
Rated voltage |
DC5V±0.1V |
|
|
Frequency / Water level |
21.40 kHz |
325+20/-40mm |
|
23.60kHz |
154±5mm |
|
|
24.00 kHz |
126±3mm |
|
|
24.40kHz |
95±20mm |
|
|
|
24.80kHz |
70±30mm |
|
Initial frequency |
26±0.3 kHz |
0mm |
|
Insulation resistance |
Insulation resistance between live part and uncharged part ≥100MΩ |
|
|
Environmental test |
High temperature: put the product in（60±2）℃ for 168h, then back to normal temperature for 2h. After that, water level change of each gear is within ±15mm |
|
|
Low temperature: put the product in (-20℃±2℃)for 168h, then back to normal temperature for 2h. After that, water level change of each gear is within ±10mm |
||
|
Humidity resistance: Put the product in (40℃±2℃, RH90%～95%)for 168h, then dry all water from the product, back to normal temperature for 2h. After that, water level change of each gear is within ±15mm |
||
|
Durability test |
With rated voltage, alternatively test the highest water level and lowest water level, frequency 20 cycles/min, total 50,000 cycles. |
|
|
Environment friendly |
Conform to RoHS 2011/65/EU |
|
Working Conditons
WORKING CONDITONS
◎Working temperature: -10℃,+50℃
◎Max altitude: 2500M
◎Max humidity: RH95% (+25℃)
◎Does not contain flammable, explosive and corrosive gas or steam
◎No significant shaking or severe shock and vibration

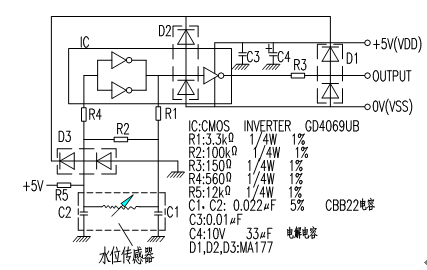

Diagram

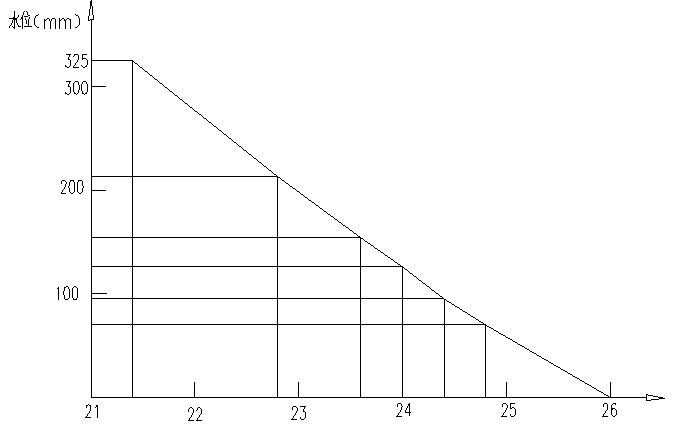

Curve
